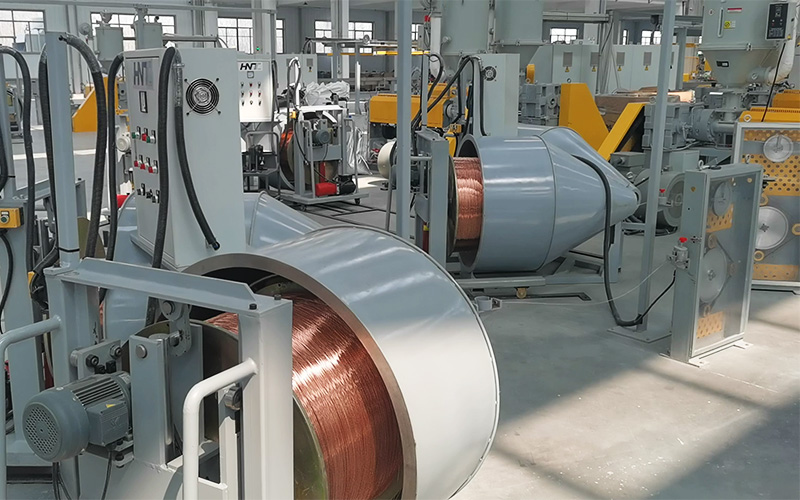

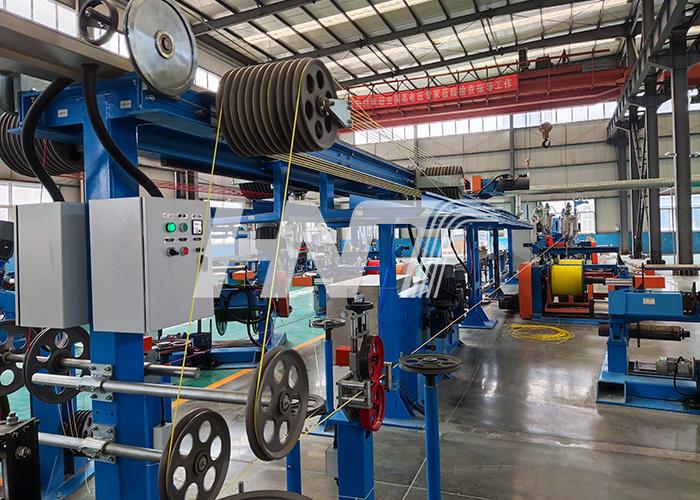

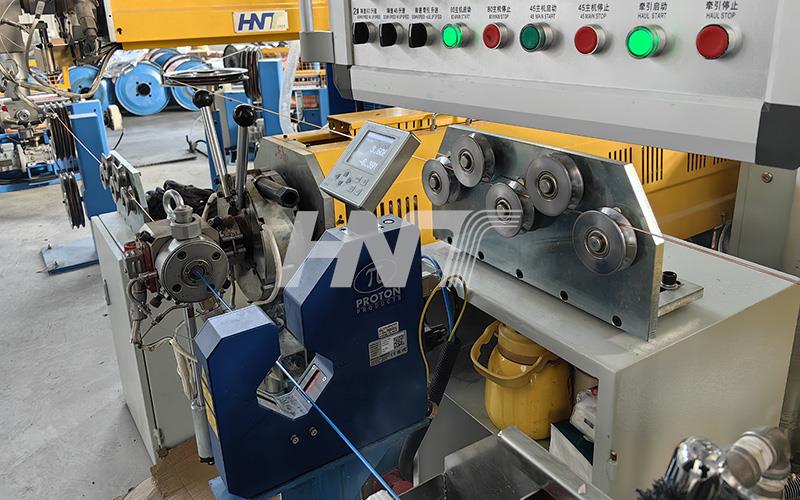

High Speed Wire Extrusion Production Line
Feature:
1. The barrel&screw with high output.
2. According to the extrusion material, choose the match special barrel & screw such as PVC,PE,LSNH,Teflon,Nylon etc.
3. Tem-control use Japanese RKC series tem-controller &solidity repay(SSR).
4. Hopper dryer& Auto-suction device use imported famous Brand.
5. The extrusion crosshead can be selected from ceter-adjusted or adjustless, with strip color, skin color and double layer extrusion function.
6. There are several types of cable take-up, such as automatic dual take-up, standard takeup, automatic cable coiling and wrapping, or robot palletizing systems.
7. According to different take-up, the line speed of different, Max. is 1000m/min.
Technical Information:
Type | Screw Date | Extrude Capacity (Kg/Hr Max) | Out Dia. | Motor | ||||
Dia. | L/D | Speed | PVC | LDPE | LSNH | |||
EX-40G | 40mm | 26:1 | 120RPM | 24 | 14 | 0.8-3mm | 11KW | |
EX-50G | 50mm | 26:1 | 120RPM | 60 | 35 | 1-6mm | 15KW | |
EX-60G | 60mm | 26:1 | 120RPM | 100 | 60 | 22 | 2-8mm | 22KW |
EX-70G | 70mm | 26:1 | 120RPM | 160 | 130 | 36 | 3-15mm | 30KW |
EX-80G | 80mm | 26:1 | 110RPM | 220 | 180 | 48 | 5-20mm | 37KW |
EX-90G | 90mm | 26:1 | 100RPM | 310 | 240 | 65 | 8-25mm | 55KW |
EX-100G | 100mm | 25:1 | 90RPM | 400 | 90 | 10-30mm | 55KW | |
EX-120G | 120mm | 25:1 | 90RPM | 550 | 15-40mm | 90KW | ||
EX-150G | 150mm | 25:1 | 60RPM | 900 | 550 | 200KW | ||
EX-200G | 200mm | 25:1 | 60RPM | 1300 | 1100 | 750 | 280(315)KW | |

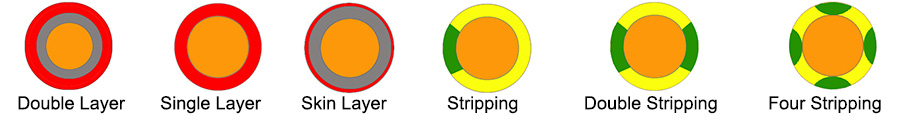

Extrusion Function:

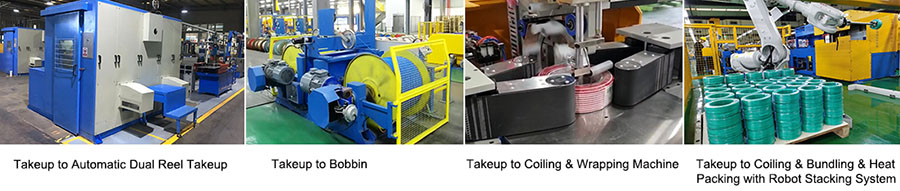

Line Takeup Method:
Customer Feedback:
